THE HYDRA SYSTEM, EXPLAINED
A polymer wall built to hold its shape.
Hydra started making polymer panels in 1984. The Pinnacle wall is structural thermoplastic with molded reinforcing ribs. Blue Tide chooses from five straight lengths and three radius panels to plan a geometric pool, then secures them with nylon bolts, nuts, and washers that do not rust.
Alignment coping
The coping caps the top of the wall and aligns adjoining panels.
Deck-support braces
Braces transfer deck weight to the wall and an anchor stake, which locks the level and alignment.
Designed openings
Skimmer and light cutouts are molded into designated panels rather than improvised on site.
This Blue Tide offering is a geometric panel pool, not a freeform gunite shell. For freeform, infinity-edge, or beach-entry shapes, explore gunite pools.
THE FINISH YOU SEE AND FEEL

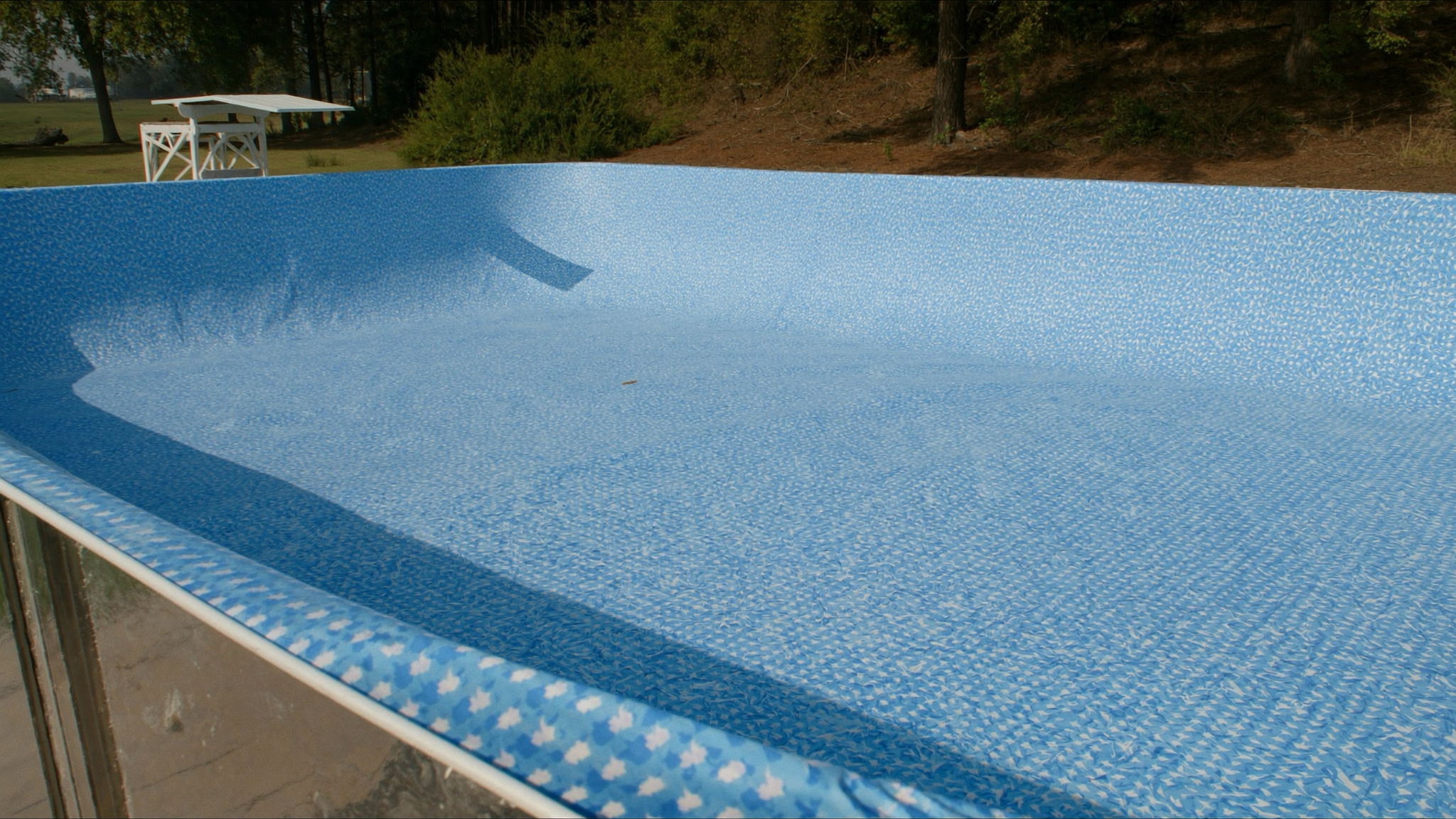

A liner cut for your exact pool.
Hydra uses virgin vinyl, prints its patterns in the USA, then measures and computer-cuts the liner to the built pool. Choose 20, 27, 28, 30, or 36 mil. Thicker liners take more wear before a puncture or leak; the 36 mil patterns are Hydra’s pet-friendly choices.
REAL HYDRA PATTERN PHOTOS
With a decorative border.
A designed waterline frames the patterned floor. These are manufacturer-hosted pattern photographs, not generic pool pictures. Confirm current availability before selecting.
30 mil
27 mil
27 mil
36 mil
All-over. No tile border.
A continuous bottom pattern can carry through the whole pool. If you like a bordered liner’s bottom but not its border, ask to run the bottom pattern all over; that choice is confirmed with Hydra when you order.
30 mil
27 mil
27 mil
20 mil · archived example
Artisan
Design-led patterns, about 27–36 mil across the examples shown.
Fusion
27 mil on the walls and 20 mil on the floor.
Prime
20 mil patterns with a broad range of looks.
Hydra’s color note: screens can shift the apparent color. Ask for a physical sample to match stone or coping. Some prints made on a white base show white at the welded seams. Archive examples may not be in stock; we confirm patterns before ordering. Browse Hydra’s current liner collection ↗
WAYS INTO THE WATER
Sweetwater steps and entries.
Sweetwater molded steps use Luran thermoplastic. Select a straight or radius entry, a Cozy Corner, a swim-out, or a recessed in-wall ladder to suit the panel plan. Colors include blue, white, and grey; water jets are optional where the entry supports them.
A clear, broad walk-in entry.
Curved treads soften the corner.
A corner entry with a rounded profile.
A shallow place to pause or step out.
Recessed access that sits within the wall.
Hydra’s Sweetwater registration card references a lifetime limited warranty on the steps. Request its written terms; this is not an unconditional promise and is separate from Blue Tide’s lifetime workmanship on the installation.
FROM DESIGN TO SWIM
How your Hydra pool comes together.
- 01
Design
Choose the geometric shape the polymer panels can build.
- 02
Set the wall
Join the wall, cap it with alignment coping, and set braces and locking anchor stakes.
- 03
Choose your entry
Fit the Sweetwater step or other selected entry to the panel layout.
- 04
Connect and deck
Complete plumbing, pump, filter, equipment, and deck work.
- 05
Measure and fit
Measure the actual pool, then have Hydra computer-cut the liner and install it without wrinkles.
Hydra offers dealers a five-working-day custom liner option and a 48-hour express option. Those are manufacturing options for a liner, not a 48-hour pool. Blue Tide sets your complete pool schedule after design and permits.
Call 318-242-8225Wall, liner, step photos and technical details: Hydra Pools. Details and availability are verified against the written order and manufacturer warranties.
